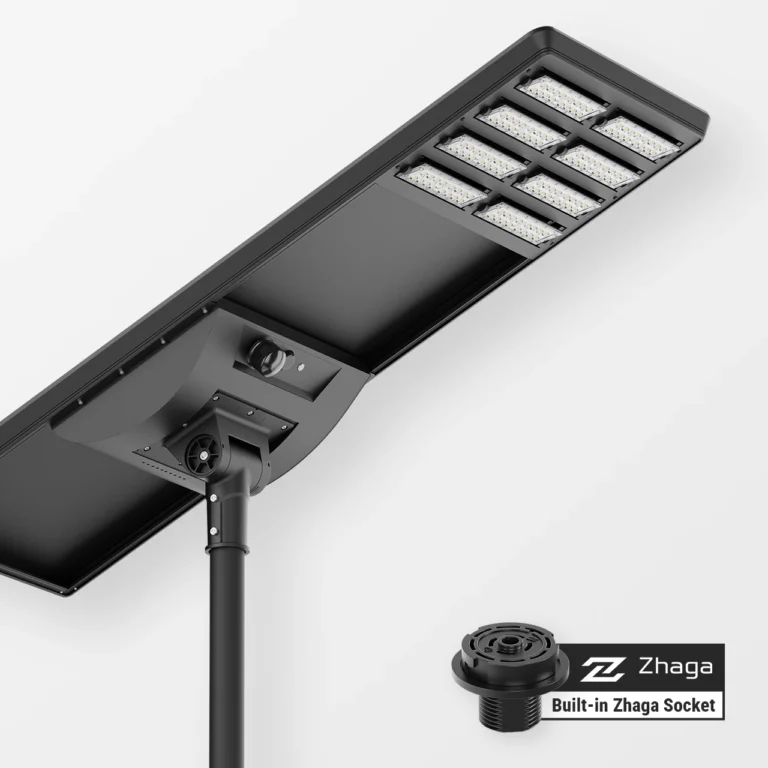

HELILUX | 200W AIO Solar LED Street Light
Four adjustable LED modules | 32,400lm | High Brightness LED
LED POWER | 200W |
|---|---|
LED Luminous |
32,400lm |
Solar Panel |
36V 260W |
LiFePO4 Battery | 25.6V 1843Wh |
Solar Controller |
120W |
Key Components & Advantages
MPPT Charge Controller
Maximises energy efficiency ensuring longer battery life and consistent illumination without blackout。
LiFePo4 Battery
Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.
High Brightness LED
High brightness led enhances visibility and safety while providing energy-efficient
Adjustable LED Module
The angle of LED module is adjustable according to road width with better lighting performance, increasing the lighting utilization and less lighting waste.
MainSpecification
← Swipe sideways to view all specifications →
| Item Number | HELILUX-150W | HELILUX-180W | HELILUX-200W |
|---|---|---|---|
| LED Power | 150W | 180W | 200W |
| Luminous | 14,400lm | 17,000lm | 32,400lm |
| CCT Range | 3000K~6000K | 3000K~6000K | 3000K~6000K |
| LED Module | SMD 5050 5W/LED Max | • | • |
| LiFePO4 Battery | 25.6V 48AH | 25.6V 60AH | 25.6V 72AH |
| Solar Panel | 36V 190W | 36V 235W | 36V 260W |
| Product Size | 1510 × 730 × 405mm | 1510 × 730 × 405mm | 1590 × 700 × 390mm |
| Charge Controller | MPPT | • | • |
| Pole Size | 76mm | • | • |
| Installation Height | 5 ~ 8m | • | • |
| Warranty | 5 Years | • | • |
