DIYA 60W All In One Solar Street Light
Adjustable LED Module | 60W | MPPT
Model | 60W | 80W |
|---|---|---|
LED Luminous |
10,200lm | 13,600lm |
Solar Panel |
82W |
103W |
LiFePO4 Battery | 12.8V 42AH
|
12.8V 54AH |
Solar Controller |
MPPT with Sensor |
MPPT with Sensor |
The DIYA series represents our premier all in one solar street light solution, engineered to deliver high-performance illumination for demanding infrastructure. Constructed from premium aluminum alloy with a specialized anti-corrosion coating, this luminaire is built to withstand the elements with IP66 waterproof and IK08 impact ratings. By integrating high-efficiency SMD5050 LED chips, a high-capacity battery, and an advanced MPPT controller, DIYA provides a powerful output ranging from 60W to 180W. This makes it the definitive choice for those seeking a reliable solar LED street light for highways, main roads, and industrial perimeters.

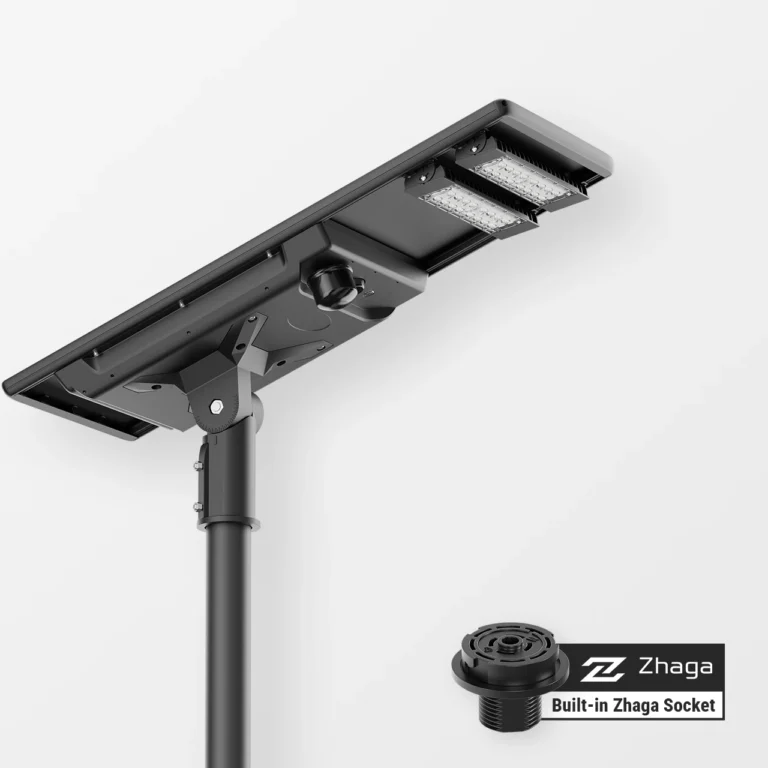

What sets DIYA apart is its unparalleled flexibility and future-ready technology. The system features adjustable LED modules that can be fine-tuned to meet specific project optics, supported by a versatile mounting bracket for both horizontal and vertical installation. For cities transitioning to intelligent infrastructure, DIYA offers an optional Zhaga-D4i socket, seamlessly transforming into a smart solar street lighting system. This IoT-ready capability allows for remote monitoring and adaptive dimming, ensuring maximum energy savings and a sophisticated lighting environment for modern urban landscapes.
Key Components & Advantages
MPPT Charge Controller
Maximises energy efficiency ensuring longer battery life and consistent illumination without blackout。
LiFePo4 Battery
Grade A+ Battery cell with high uniformity of internal resistance and charging and discharging.
Programmable by Remote
The lighting program can be modified anytime by remote control according to customers' requirement.
High Efficiency LED
High-brightness LED chips provide superior illumination, enhancing visibility and energy efficiency.
Motion Sensor
PIR or microwave sensor could be enabled to save more energy and extend the lifetime and more days autonomy.
Adjustable LED Module
The angle of LED module is adjustable according to road width with better lighting performance, increasing the lighting utilization and less lighting waste.
| Item Number | DIYA-60W | DIYA-80W | DIYA-100W | DIYA-120W |
|---|---|---|---|---|
| LED Power | 60W | 80W | 100W | 120W |
| Luminous | 10,200lm | 13,600lm | 17,000lm | 20,400lm |
| CCT Range | 3000K~6000K | • | • | • |
| LED Module | SMD5050 | • | • | • |
| LiFePO4 Battery | 12.8V 42AH | 12.8V 54AH | 12.8V 60AH | 16V 54AH |
| Solar Panel | 18V 82W | 18V 103W | 18V 125W | 18V 148W |
| Product Size | 1085mm | 1280mm | 1580mm | 1800mm |
| Charge Controller | MPPT | • | • | • |
| Pole Size | 76mm | • | • | • |
| Installation Height | 5 ~ 8m | • | • | • |
| Warranty | 5 Years | • | • | • |
