Pneumatic Telescopic pole
pneumatic telescopic pole

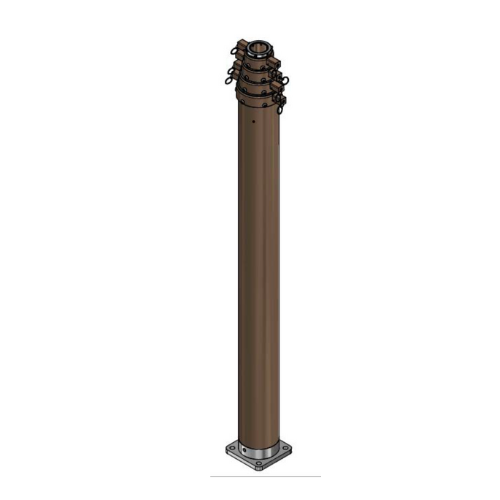

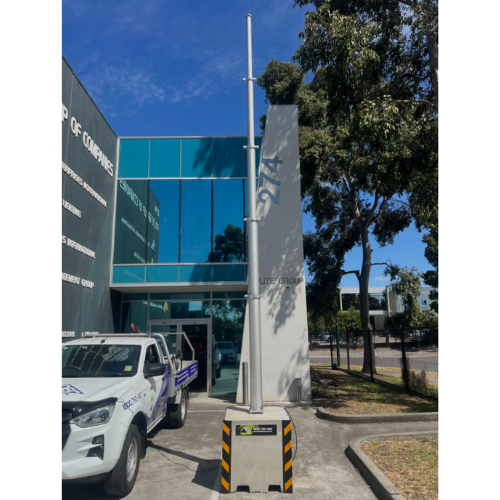

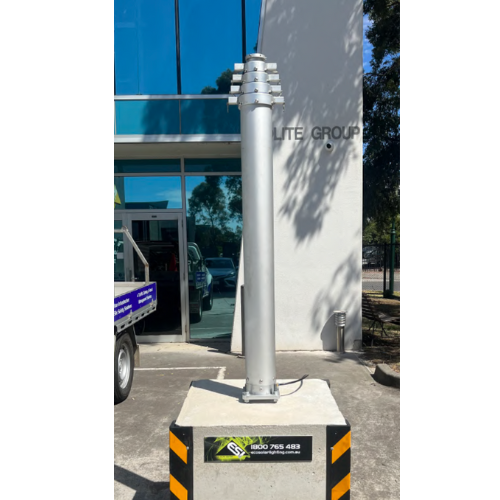

Eco Solar’s Pneumatic Telescopic Poles offer a smart, space-saving solution for installing solar lighting, security cameras, weather stations, and more. Designed for single-person operation, the poles raise vertically using an air compressor and extend in five stages up to 6 m, retracting to a compact 2 m for easy transport and handling. Ground-level servicing ensures safer, faster maintenance without cranes or large clearance areas, making them ideal for parks, car parks, sporting fields, industrial sites, roadsides, and remote locations. With a minimal 1 m maintenance footprint, they deliver efficient, cost-effective performance in even the most space-restricted environments.
Benefits
- Easy single-person install – no cranes needed
- Raises vertically with air compressor
- Compact 1 m maintenance footprint
- Extends to 6 m, retracts to 2 m
- Ground-level servicing for safety
- Ideal for solar, security, and weather equipment
Applications
- Festivals
- Political Events
- Military Applications
- Community Sporting Events
- Utility Repairs
- Road Works
- Hazard Lighting
- Border Patrol
- Emergency Lighting
Specifications | |
---|---|
Lowered Height | 2000mm |
Raised Height | 6000mm |
Number of Joints | 5 |
Material | 6063 Aluminium Alloy |
Baseplate | 195mm x 195mm |
PCD | 148.5mm |
Weight | 55kg |
Vehicle Load | 40kg |
Working Mode | Pneumatic |
Working Pressure | <0.8Mpa |
Compressor | 150PSI (included) |
Ragbolts | We manufacture |
Concrete Block | We manufacture |
